Introduction
HADI-BGA is a Template-based inspection software.
User can deploy HADI-BGA as an Automated BGA Detection and Automated Void Inspection software.
It supports following inspection features:
| Inspection Functions | Support | |
| 1 | Template Management | YES |
| 2 | Automated BGA Detection | YES |
| 3 | Automated Void Inspection | YES |
| 4 | Inline Void Inspection | NO |
| 5 | Inline PCB Inspection | NO |
| 6 | Batch Processing Simulation | NO |
Check more details in Products Comparison.
Key Features

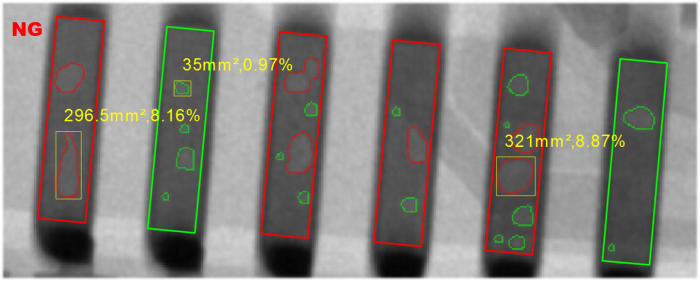

Void Inspection

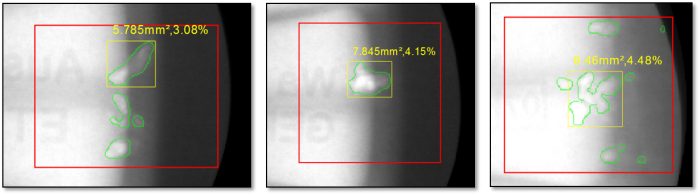

HADI finds out Voids which have weak contrast with the background.
HADI finds out defects on inhomogeneous Background.

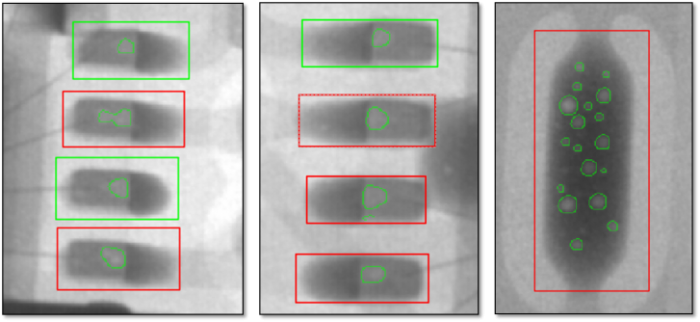

HADI finds out voids even the ROI is larger than the object with no Edge Leakage.
BGA Detection

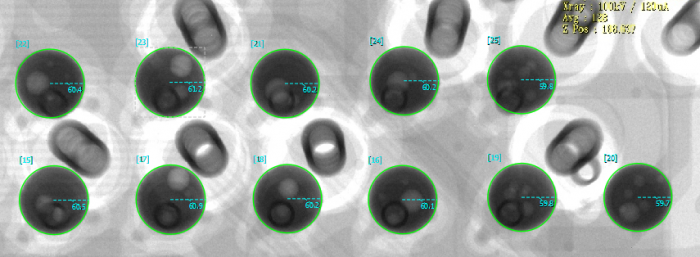

Simple BGA Detection
〮 HADI creates Circle ROIs to represent BGA Balls.
〮 HADI shows each ball’s radius size.

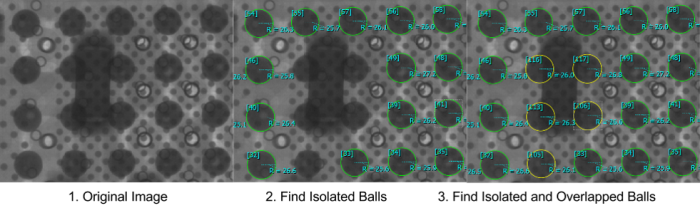

Advanced BGA Detection
〮 HADI finds Overlapped BGA Balls.
〮 HADI shows each ball’s radius size.
